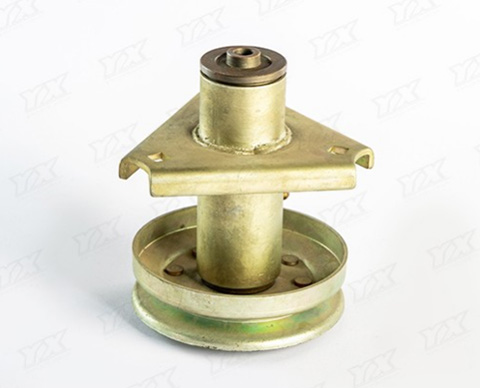

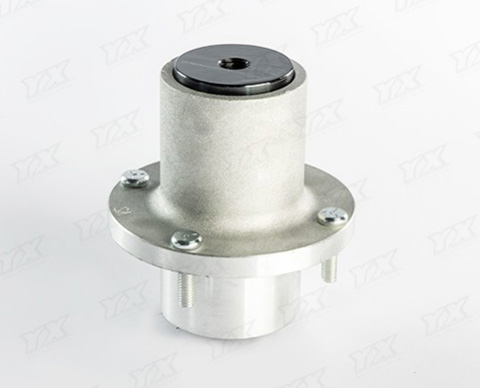

Lawn mower spindle accessories play a critical role in transmitting power from the engine to the cutting blades. These components operate under continuous rotation, vibration, and varying loads. Selecting an appropriate manufacturing process directly affects structural reliability, dimensional accuracy, and long-term service performance. Aluminum die casting has become a widely adopted solution for producing lawn mower spindle housings and related accessories due to its balanced mechanical and production advantages.

1. Structural Strength with Reduced Weight

Aluminum alloys used in die casting offer a favorable strength-to-weight ratio. For lawn mower spindle accessories, this characteristic is essential. Lower component weight reduces overall deck load and helps maintain smoother blade rotation. At the same time, properly selected die casting alloys provide sufficient tensile strength and hardness to withstand belt tension, blade impact, and rotational stress.

The rigidity of die-cast aluminum also helps maintain bearing alignment, which is critical for spindle assemblies. Accurate alignment minimizes vibration and uneven blade wear during operation.

2. High Dimensional Accuracy

Lawn mower spindle accessories require tight tolerances, particularly in bearing seats, mounting surfaces, and shaft bores. Aluminum die casting allows near-net-shape production, reducing the need for extensive secondary machining.

With precision mold design and stable process control, manufacturers can achieve consistent wall thickness and repeatable dimensions. This improves assembly efficiency and reduces rejection rates in mass production environments.

3. Efficient Heat Dissipation

Spindle assemblies generate heat due to friction in bearings and high-speed blade rotation. Aluminum has good thermal conductivity compared to many other structural materials. Die-cast aluminum housings help dissipate heat more effectively, which can contribute to stable bearing performance and extended component life.

4. Design Flexibility

Aluminum die casting supports complex geometries, including integrated mounting brackets, reinforcement ribs, and lubrication channels. This allows engineers to optimize structural layout without adding separate parts.

For lawn mower spindle accessories, integrated designs can reduce assembly steps and improve overall structural integrity. Reinforcement ribs, for example, can be cast directly into the housing to enhance stiffness without significantly increasing material usage.

5. Cost-Effective for Large-Scale Production

For high-volume lawn mower production, aluminum die casting offers strong economic advantages. Once the mold is developed, cycle times are short and repeatability is high. This makes it suitable for consistent batch manufacturing of spindle housings and related components.

Additionally, the near-net-shape nature of die casting lowers machining time, which helps control overall production cost while maintaining quality standards.

6. Surface Quality and Post-Processing Compatibility

Die-cast aluminum parts typically exhibit smooth surface finishes directly from the mold. This supports secondary processes such as powder coating, painting, or machining when required.

For lawn mower spindle accessories, surface treatments can improve corrosion resistance and visual consistency, especially for outdoor equipment exposed to moisture and debris.

Conclusion

Aluminum die casting provides a practical combination of structural strength, dimensional precision, thermal performance, and production efficiency. For lawn mower spindle accessories that operate under continuous mechanical stress, this manufacturing process supports reliable performance while maintaining cost control in large-scale production.

By aligning material properties with functional requirements, manufacturers can achieve stable, durable spindle assemblies suited for modern lawn mower applications.
