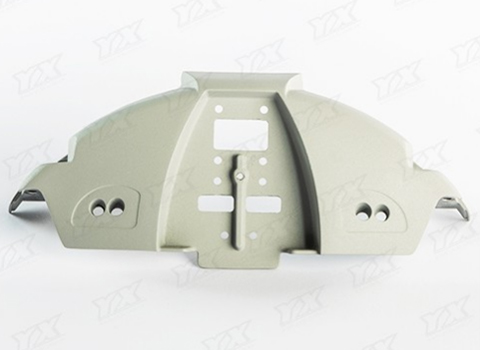

Precision is a non-negotiable requirement in the medical device industry. From diagnostic imaging systems to portable monitoring equipment, housings must protect sensitive electronics, maintain dimensional stability, and comply with strict regulatory standards. Aluminum die casting has become a preferred manufacturing method for producing high-precision medical device housings due to its excellent dimensional control, structural integrity, and repeatability.

High Dimensional Accuracy and Tight Tolerances

Aluminum die casting uses high-pressure injection of molten aluminum into hardened steel molds. This process enables manufacturers to achieve tight tolerances—often within ±0.05 mm depending on part geometry and size. The rigid steel tooling ensures consistent replication of complex shapes across large production volumes.

For medical device housings, this precision is critical. Accurate alignment of internal components such as PCBs, sensors, and connectors reduces assembly errors and ensures optimal device performance. It also minimizes the need for secondary machining, lowering production costs while maintaining accuracy.

Superior Surface Finish and Structural Integrity

Medical device enclosures often require smooth surfaces to meet hygiene and sterilization standards. Aluminum die casting produces parts with fine surface finishes that can be easily enhanced through powder coating, anodizing, or antimicrobial coatings.

Additionally, the rapid solidification process creates a dense microstructure, improving mechanical strength and resistance to deformation. This structural stability helps maintain dimensional consistency even under thermal cycling or mechanical stress—common conditions in medical environments.

Complex Geometry with Integrated Features

One major advantage of aluminum die casting is its ability to produce complex geometries in a single operation. Integrated mounting bosses, heat sinks, EMI shielding features, and threaded inserts can be cast directly into the housing.

For medical devices, this integration:

Reduces assembly steps

Enhances alignment accuracy

Improves electromagnetic compatibility (EMC) performance

Increases overall reliability

By minimizing component stacking and fastening points, manufacturers reduce tolerance accumulation, thereby improving the overall precision of the final assembly.

Thermal Management Performance

Many medical devices generate heat during operation. Aluminum’s high thermal conductivity allows die-cast housings to function as passive heat sinks, maintaining stable internal temperatures. Stable thermal conditions reduce material expansion and contraction, preserving dimensional accuracy over time.

This is especially important in imaging systems, patient monitoring equipment, and laboratory instruments where even slight misalignments can affect measurement accuracy.

Consistency in Mass Production

Medical devices often require strict quality control and traceability. Aluminum die casting offers exceptional repeatability due to controlled injection parameters, automated production lines, and durable tooling systems.

Once the mold is optimized, thousands or even millions of identical housings can be produced with minimal dimensional variation. This consistency supports regulatory compliance and ensures uniform performance across product batches.

Conclusion

Aluminum die casting significantly enhances the precision of medical device housings through tight tolerances, structural stability, integrated design features, and excellent repeatability. By combining mechanical strength, thermal performance, and manufacturing efficiency, this process provides a reliable solution for high-accuracy medical applications.

For manufacturers seeking durable, lightweight, and dimensionally stable enclosures, aluminum die casting remains one of the most effective and scalable production methods available in the medical industry.
