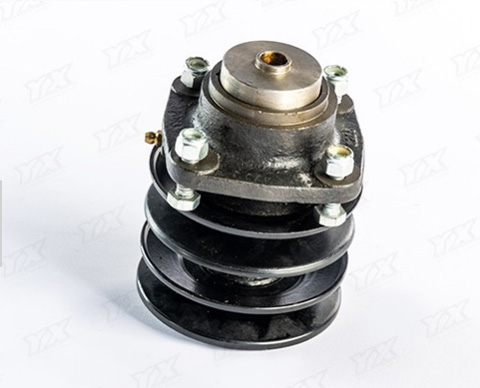

Aluminum die casting lawn mower spindle accessories play a critical role in transmitting power from the engine to the cutting blades. Their dimensional stability, structural strength, and surface integrity directly affect mower performance and service life. To ensure reliable operation, manufacturers and buyers should adopt a systematic quality verification process covering material, structure, machining, and functional performance.

1. Confirm Raw Material Specifications

Quality verification begins with the aluminum alloy grade. Common die casting alloys such as ADC12 or A380 are widely used due to their balanced mechanical properties and castability. Material certificates should confirm chemical composition compliance with relevant standards. Spectrometer analysis can further verify that the alloy composition matches technical requirements.

Attention should also be paid to internal porosity levels. Excessive gas or shrinkage porosity can weaken the spindle housing and reduce fatigue resistance. X-ray inspection or section analysis is often applied to evaluate internal integrity.

2. Inspect Casting Structure and Surface Condition

Visual inspection is a basic but necessary step. The casting surface should be free from cracks, cold shuts, severe shrinkage cavities, and obvious deformation. Minor surface imperfections may be acceptable if they do not affect assembly or structural strength.

Key load-bearing areas, such as bearing seats and mounting flanges, must show no visible defects. Uniform wall thickness and well-designed ribs contribute to stable mechanical performance under high-speed rotation conditions.

3. Measure Dimensional Accuracy

Spindle accessories require precise dimensional control to ensure correct alignment with bearings, shafts, and mower decks. Critical dimensions typically include:

Bearing bore diameter and roundness

Mounting hole position tolerance

Perpendicularity between the shaft axis and mounting surface

Coordinate Measuring Machines (CMM) or precision gauges are commonly used to verify tolerances. Deviations beyond specified limits can cause vibration, premature bearing wear, or blade misalignment.

4. Evaluate Machining Quality

After die casting, spindle components usually undergo CNC machining. The following aspects should be verified:

Surface roughness of bearing seats

Thread accuracy and integrity

Concentricity between machined surfaces

Poor machining can compromise assembly stability and operational balance. Clean cutting edges and burr-free finishes indicate controlled processing conditions.

5. Check Mechanical Properties

Mechanical testing ensures that the component meets load-bearing requirements. Tensile strength, hardness, and impact resistance are typical evaluation indicators. For lawn mower spindle accessories, fatigue resistance is particularly important due to repeated rotational stress.

Hardness testing on representative samples can confirm consistency in heat treatment or material structure.

6. Perform Assembly and Functional Testing

Final validation should include trial assembly with bearings and shafts. Proper fit without excessive clearance or interference confirms dimensional compatibility. Rotational testing can reveal abnormal noise, imbalance, or misalignment.

In some cases, dynamic balance testing is conducted to minimize vibration during high-speed operation.

Conclusion

Verifying the quality of aluminum die casting lawn mower spindle accessories requires a comprehensive approach covering raw materials, casting integrity, machining precision, and functional performance. By applying standardized inspection methods and maintaining strict tolerance control, manufacturers and buyers can reduce failure risks and ensure stable mower operation in practical applications.
